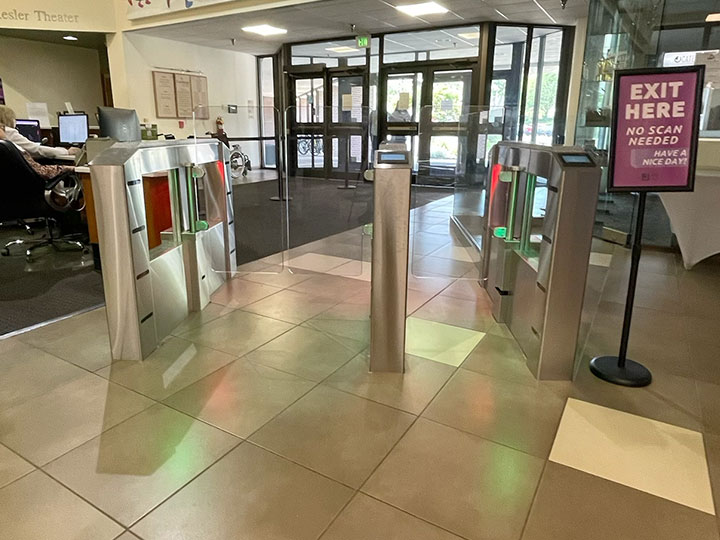

In-Stile Series IS9900 Highly Customizable Barrier Optical Turnstile
Enhanced Turnstile Security Meets Customizable Style
The In-Stile Series 9900 is our most versatile barrier optical turnstile, ideal for any interior application where security and style are important, and dimensions are tight. Designed to be highly customizable, this innovative model offers a choice of cabinet finishes from traditional stainless to a spectrum of powder coat colors on Carbon Steel to match any décor or company/team branding. Customers can choose glass or polycarbonate panels (that can be etched with a logo) and have 2 height choices to select from (36” or 46” tall).
At last, architects and designers can truly create reliable, custom turnstile security systems that satisfy their design vision.
Product Overview
The IS-9900 Barrier Opticals are a fusion of optical technology with the ultimate customization available on the market today.
When turnstile access is granted, they swing open in sync to allow entry while optical sensors confirm passage and close the lane accordingly. Unauthorized passage (such as “tailgating” or attempting to cross through the lane in the wrong direction) will engage its alarm, which can be integrated into any number of internal security systems.

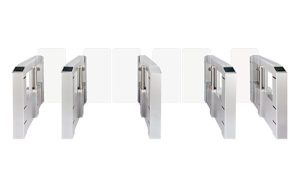

Your array will be designed based on the volume of expected traffic and installation space. The normal passage rate is 30 people per minute on average (remember, people are the slowest component of any system).
Turnstile Options
Dimensions & Drawings

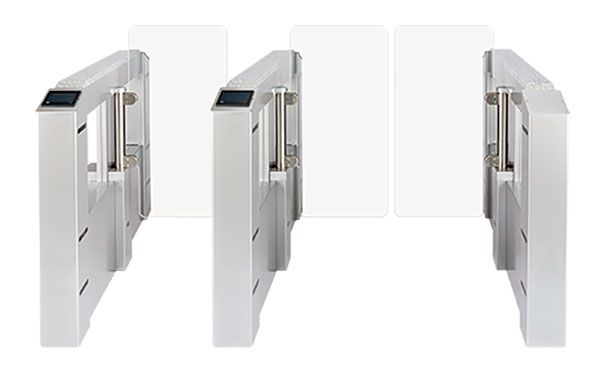

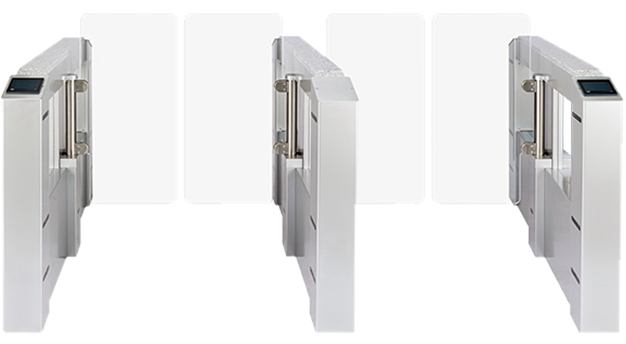

In-Stile Series ADA Lane Pairing
| HEIGHT | 38.7″ (983mm) |
| WIDTH | 56″ (914.4mm) |
| DEPTH* | 56.191″ (1427.3mm) |
| ADA Passage Width | 36″ to 42″ |
In-Stile Series Single Lane
| HEIGHT | 38.7″ (983mm) |
| WIDTH | 24.72″ (627.9mm) |
| DEPTH* | 56.191″ (1427.3mm) |
| ADA Passage Width | 18″ to 22″ |
Features & Options
Product Materials and Finishes
- Lid: Select your solid surface or wood laminate top from our standard color selections or request a quote for a custom color if needed.
- Cabinet: Choose from 304 stainless steel / No. 4 satin finish cabinet or powder coated carbon steel.
- Panel: Available in two height choices to select from (36″ or 46″ tall), tempered glass or polycarbonate, and can be etched with company logos or art provided by the customer.
Design & Construction
- Designed for secure and reliable operation with aesthetics in mind
- Inner Framework constructed of carbon steel; outer cabinet may be Powder Coated Carbon Steel or 304 Stainless based on your selection
- Smart motor designed for longevity and reliable silent operation
- Nearly universal integration to any number of access control systems
- Fire alarm inputs incorporated to work with your fire system – upon fire condition panels open outward for free egress
- Color Indicator panel directs users through lane
- Alarm condition provides audible tone as well as solid state output for integration into other systems
- Minimal exposed hardware
- Break-away mode engaged via settings with optional key reset or timed reset
Operation Features
- Can be configured for controlled passage in one or both directions, with free or no passage in the other via settings on the logic controller
- Lower section optical sensors prevent unauthorized “crawling” through lanes
- Dual-axis cabinet sensor alignment with visible target to ensure a simplified and reliable installation
Options
- Outer Cabinet: Stainless 304 or Powder Coated Carbon Steel
- Panels can be made from Tempered Glass or Polycarbonate. Either can be etched with your logo or provided artwork (per our art file requirements)
- Panel heights of 36″ standard or the taller version at 46″
- Card in/Card out or Free out via sensor
Electrical Specifications:
- Input Voltage: 100-240 VAC
- Input Current: 4.26 – 2.23 A
- Frequency: 50/60 Hz
- Operating Voltage: 24VDC
- Operating Current: Maximum 20 A Storage Temperature: -40 to 158°F
- Operating Temperature: -4 to 131°F
- Standards and Codes: Austenitic stainless steel: ASTM A240, A249, A276 All fasteners provided meet IFI ANSI/ ASME Fastener Standards American Welding Society (AWS) Standard D 1.1
Controlled Access, Inc. is certified by Advantage International Registrar to be an ISO 9001:2015 company
Call Controlled Access today. We can help you determine the best product, configuration, and options for your security turnstile project. 800 942-0829
Corian top color selections:
These images are for example only and vary from actual colors. You should verify the color with your own sample.Additional solid surface colors/brands are possible and can be priced per project. Offerings may change without notice.
- Maui
- Oat
- Platinum
- Gray Onyx
- Mineral
- White Onyx
- Basalt Terrazzo
- Blue Crush
- Blue Pebble
- Black Quartz
Additional top selections, such as Corian® or wood can be quoted upon request. Top selections are subject to availability.
Standard powder coating color selections:
- Gelger Black II - 60 Gloss (A.K.A Vulcan Black)
- RAL 9003 Signal White
- RAL 1013 Oyster White
- RAL 9007 Grey Aluminum
- RAL 5023 Distant Blue
- RAL 5010 Gentian Blue
- RAL 6002 Leaf Green
- RAL 8028 Terra Brown
Additional colors are available upon request.
- Weather Vein
- Luna
*Special Powder Coat color treatments can be quoted
Technical Documents
Technical Features:
- Optical sensors provide for passage for up to 30 people per minute
- Powerful through-beam sensors exceed sensing distance to ensure proper functionality
- Tri-Color Lights for lane status
- Lower section optical sensors prevent unauthorized “crawling” through lanes
- Can be configured for controlled passage in one or both directions, with free or no passage in the other via settings on the logic controller
- Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems
- Passage widths are flexible from 36” – 42” for ADA lane and 18”-22” for single lanes
- Fire alarm inputs incorporated to work with your fire system – upon fire condition panels open outward for free egress
Technical Documents
Additional Suggestions
Complete any project with our HS336 / HS348-ADA Full Height Gate. It’s the matching ADA solution for your HS400 Series turnstile, and is available in multiple styles with vertical bars, security mesh and push bar exiting. It can be custom-built for width.
