Retail & Loss Prevention Tools
Controlled Access offers access control solutions for retailers that help control traffic in and out of their stores, and within areas needing additional pedestrian traffic control.
The increasing “grab and go” incidents and the taking of shopping carts full of unpaid merchandise out thru entrances has become a universal problem. One way to help stop this is with turnstile and rail systems.
All our turnstiles, including these loss prevention models can be triggered via sensors in rail or on the unit, or by floor mat or ceiling mount detectors. And we can also provide custom railings that help direct traffic and match your interior design needs. Additionally, both styles create an ADA width lane, but can be ordered with shorter arms for situations requiring a smaller passage area.

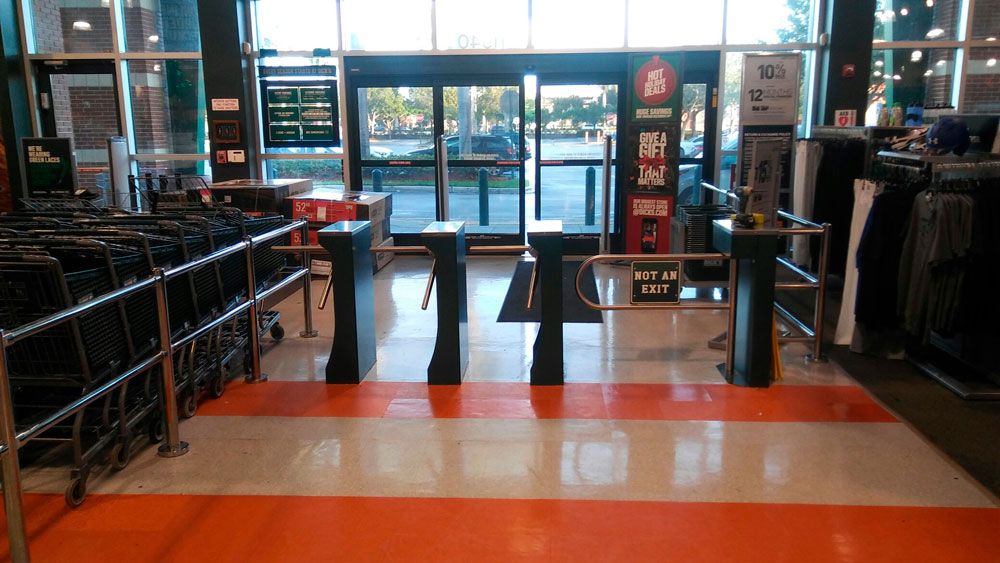

Waist High Security Turnstiles Triggered by Sensors
All our loss prevention turnstiles, including these waist high turnstile models, can be triggered via sensors in rail or on the unit or by floor mat or ceiling mount detectors. We can also provide custom railings that help direct traffic and match your interior design needs. Additionally, both styles create an ADA-width lane but can be ordered with shorter arms for situations requiring a smaller passage area.
Loss Prevention ADA Motorized Gates
Both the LP400-ADA-M and BR5500-ADA-M are designed to control patron movement in and out of retail establishments and are also useful for queuing situations and customer flow. The M in their name signifies motorized, where the arm self actuates and moves by itself.
Equipped with Wireless Receivers
Traditionally these are one-direction units – ideal for when no attendant is present (allowing only entry). They can also be equipped with wireless receivers so store management can trigger openings from either direction with a key fob. Choose from a wide variety of solid surface top and powder coating colors.
Controls Emergency Evacuations
Using a sensor or other trigger to activate for entry, these units can be configured to only allow one way traffic flow but permit exit on power failure or an activated fire alarm, thus allowing emergency egress when timely evacuation is required.
The LP400-ADA-M (Loss Prevention ADA Motorized gate) is a low-profile, highly customizable unit that can be made to match any environment and is only available as a motorized unit.
The BR5500-ADA-M is slightly larger and can be ordered as an “M” or motorized model or can be simply manual in one or two directions, or electronic (triggered by a switch, remote sensor, push button or floor mat trigger.
Turnstile Options
Dimensions & Drawings

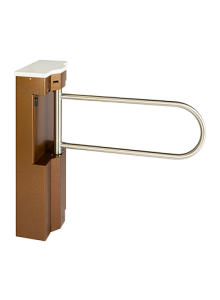

LP400-ADA-M (LOSS PREVENTION ADA MOTORIZED GATE)
| Dimensions | |
|---|---|
| Height | 38.925″ |
| Width | 43.35″ |
| Depth | 15.25″ |
| Arm Length | 34.437″ |

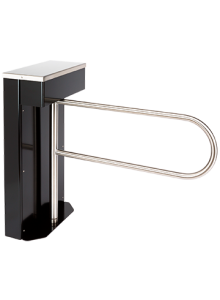

BR5500-ADA-M (BRUTE SERIES MOTORIZED GATE)
| Dimensions | |
|---|---|
| Height | 38.5″ |
| Width | 44.75″ |
| Depth | 20.125″ |
| Arm Length | 34.437″ |
LP400-ADA-M (Loss Prevention ADA Motorized Gate)
Operation Features:
- Smart motor driven ADA length gate
- No control head used for a low maintenance design
- Monitors the direction of traffic featuring audible and visual wrong way alarms
- Can be used as a free passage at an entrance while preventing exiting
- Home position alarm will sound if gate is forced open without using access control
- Cross beam cabinet sensors prevent premature gate closure
- Daylight visible indicator lights
- Nearly universal integration to any number of access control and fire alarm systems
- Gate moves freely upon power failure
- Optional Break-Away Mode available via settings
Options:
- Wave to open switch
- Variable arm lengths (up to 36″)
- Signage brackets
- Additional options available upon request
Design & Construction:
- Designed for secure and reliable operation with aesthetics in mind
- Cabinet upper and lower shells are constructed with rigid (7 gauge) carbon steel with 16 gauge front panels
- Cover is designed from your choice of solid surface material
- Arm assembly constructed with 1 5/16″ (33.4mm) diameter, (12 gauge) stainless steel
Materials and Finishes:
- Lid: Select from our palette of solid surface colors
- Cabinet: Your choice of 11 designer powder coat colors to match any decor. Black is standard. Custom RAL colors can be quoted
Corian top color selections:
These images are for example only and vary from actual colors. You should verify the color with your own sample.Additional solid surface colors/brands are possible and can be priced per project. Offerings may change without notice.
- Maui
- Oat
- Platinum
- Gray Onyx
- Mineral
- White Onyx
- Basalt Terrazzo
- Blue Crush
- Blue Pebble
- Black Quartz
Additional top selections, such as Corian® or wood can be quoted upon request. Top selections are subject to availability.
Standard powder coating color selections:
- Gelger Black II - 60 Gloss (A.K.A Vulcan Black)
- RAL 9003 Signal White
- RAL 1013 Oyster White
- RAL 9007 Grey Aluminum
- RAL 5023 Distant Blue
- RAL 5010 Gentian Blue
- RAL 6002 Leaf Green
- RAL 8028 Terra Brown
Additional colors are available upon request.
- Weather Vein
- Luna
*Special Powder Coat color treatments can be quoted
BR5500-ADA-M (Brute Series Motorized Gate)
Operation Features:
- Smart motor driven ADA length gate
- No control head used for a low maintenance design
- Monitors the direction of traffic featuring audible and visual wrong way alarms
- Can be used as a free passage at an entrance while preventing exiting
- Home position alarm will sound if gate is forced open without using access control
- Cross beam cabinet sensors prevent premature gate closure
- Daylight visible indicator lights
- Nearly universal integration to any number of access control and fire alarm systems
- Gate moves freely upon power failure
Options:
- Free passage sensor rail system
- Wave to open switch
- Variable arm lengths (up to 40″)
- Signage brackets
- Additional options available upon request
Design & Construction:
- Designed for secure and reliable operation with aesthetics in mind
- Cabinet upper and lower shells are constructed with rigid (7 gauge) carbon steel
- Cover is constructed with (16 gauge) 304 stainless steel, No. 4 satin finish
- Arm assembly constructed with 1 5/16″ (33.4mm) diameter, (12 gauge) stainless steel
Materials and Finishes:
- Lid: Our signature 304 stainless steel / No. 4 satin finish
- Cabinet: Your choice of 8 designer powder coat colors to match any décor. Black is standard. Custom RAL colors can be quoted.
Standard powder coating color selections:
- Gelger Black II - 60 Gloss (A.K.A Vulcan Black)
- RAL 9003 Signal White
- RAL 1013 Oyster White
- RAL 9007 Grey Aluminum
- RAL 5023 Distant Blue
- RAL 5010 Gentian Blue
- RAL 6002 Leaf Green
- RAL 8028 Terra Brown
Additional colors are available upon request.
