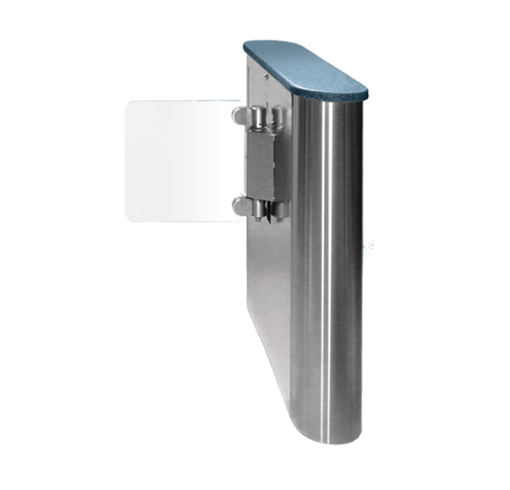

Executive Series Barrier Optical Turnstile (swing gates)

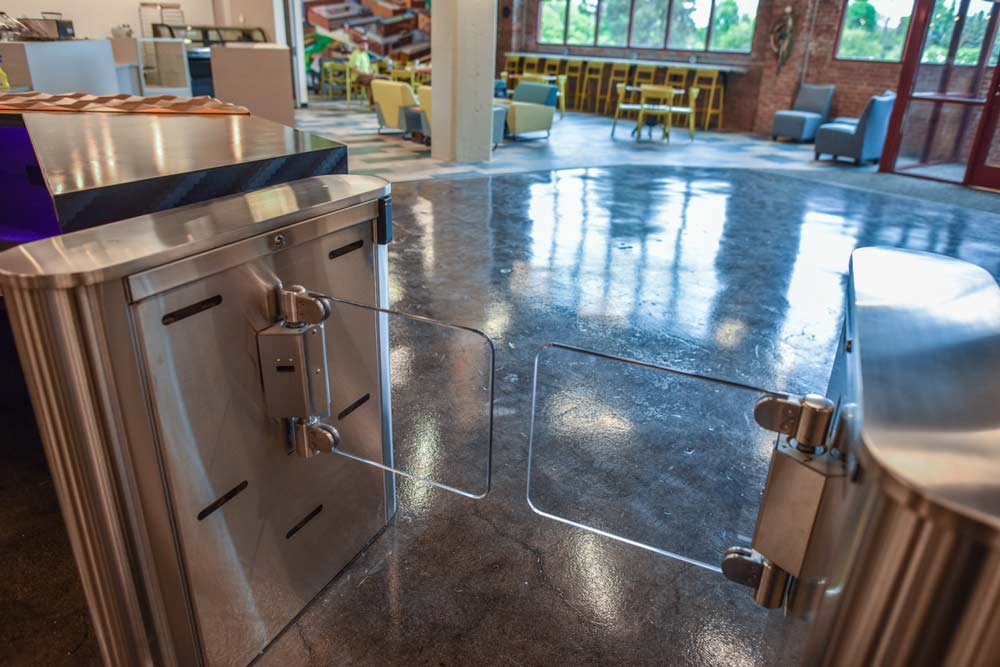

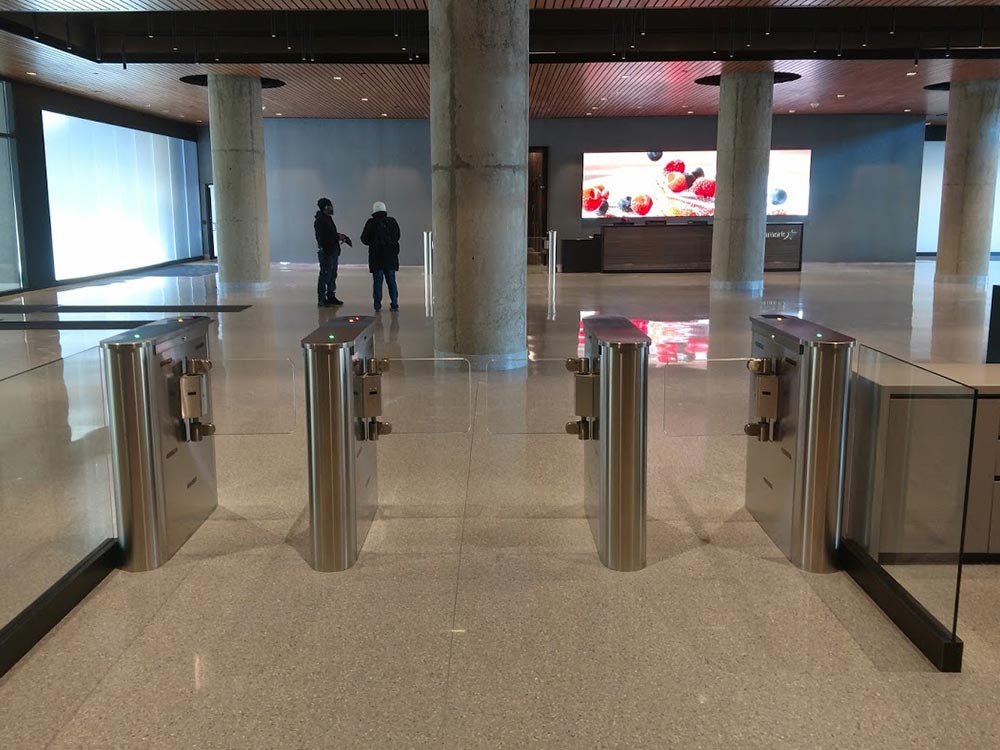

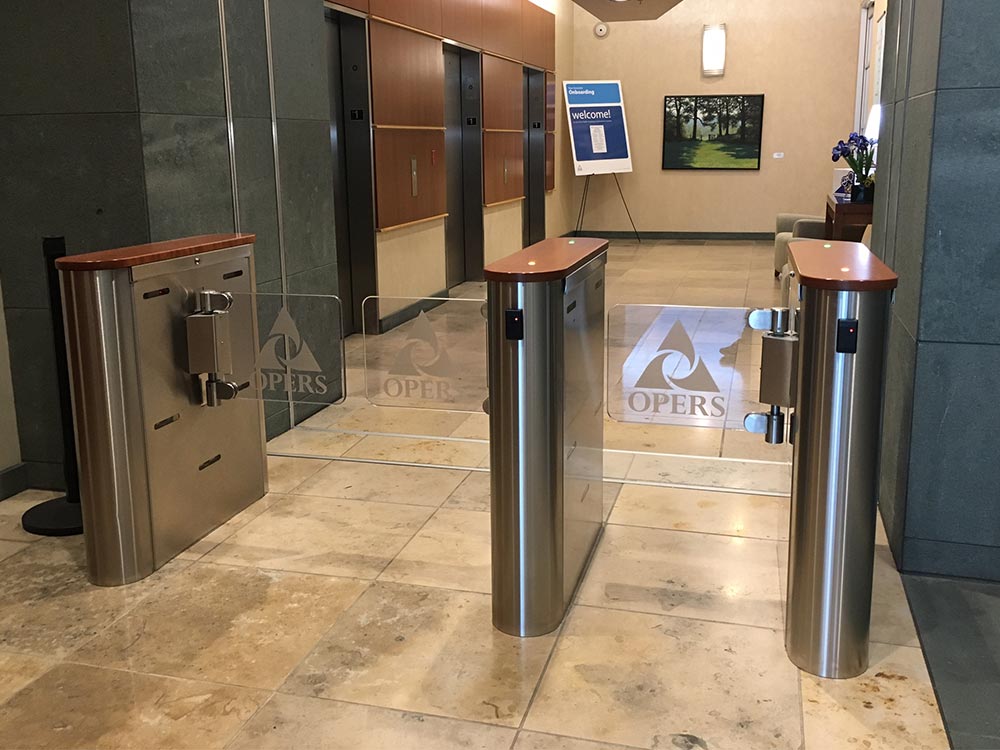

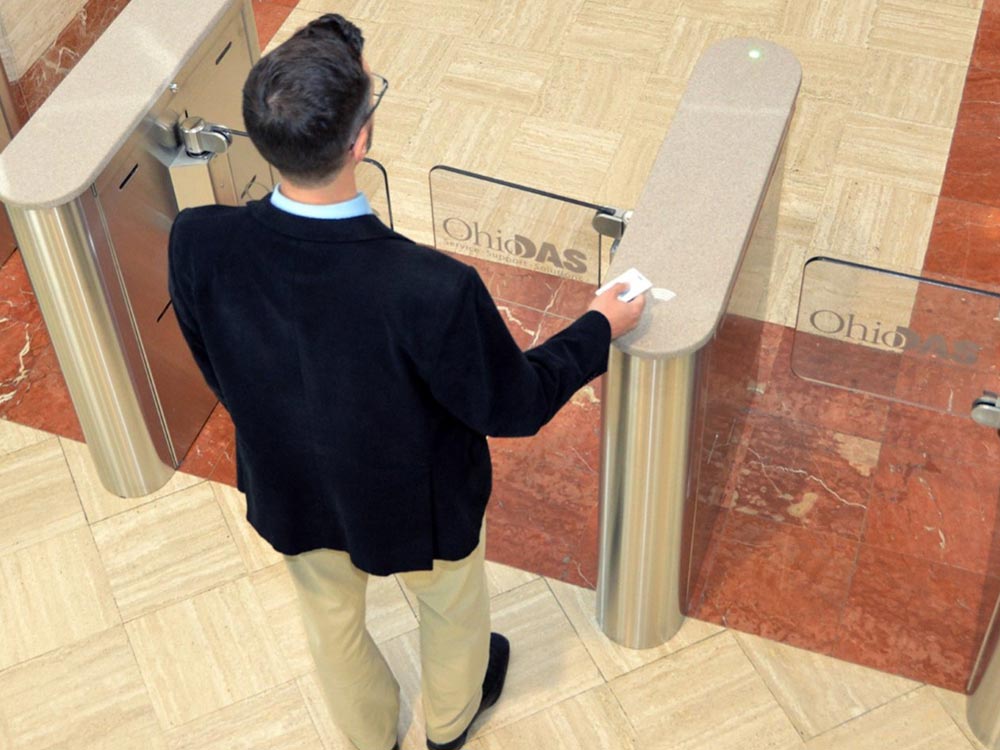

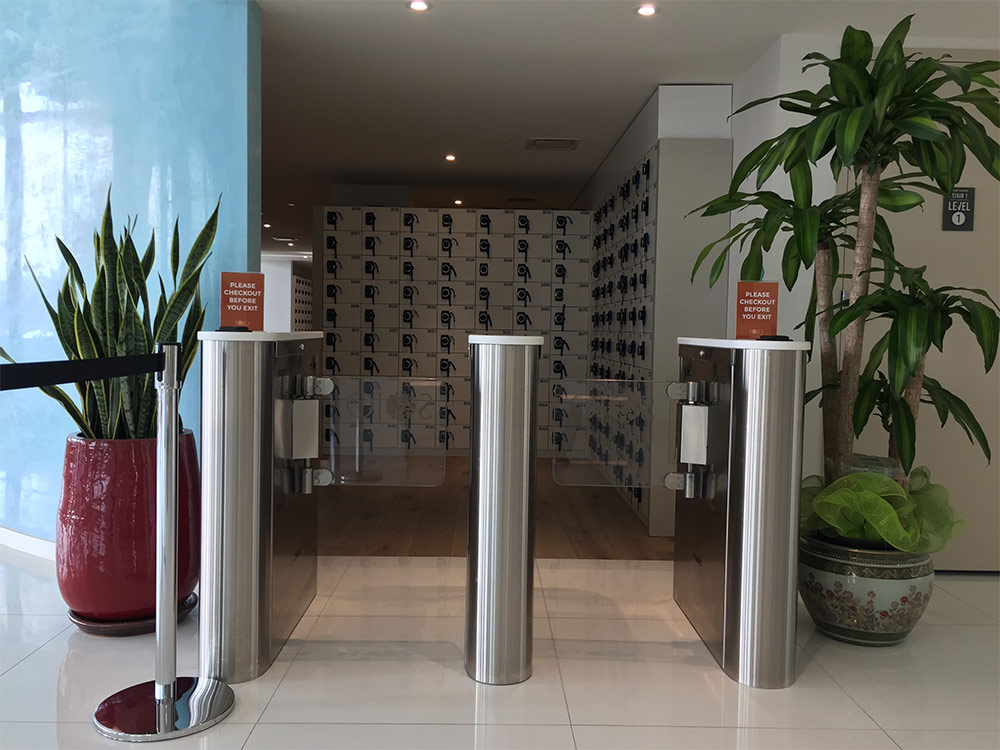

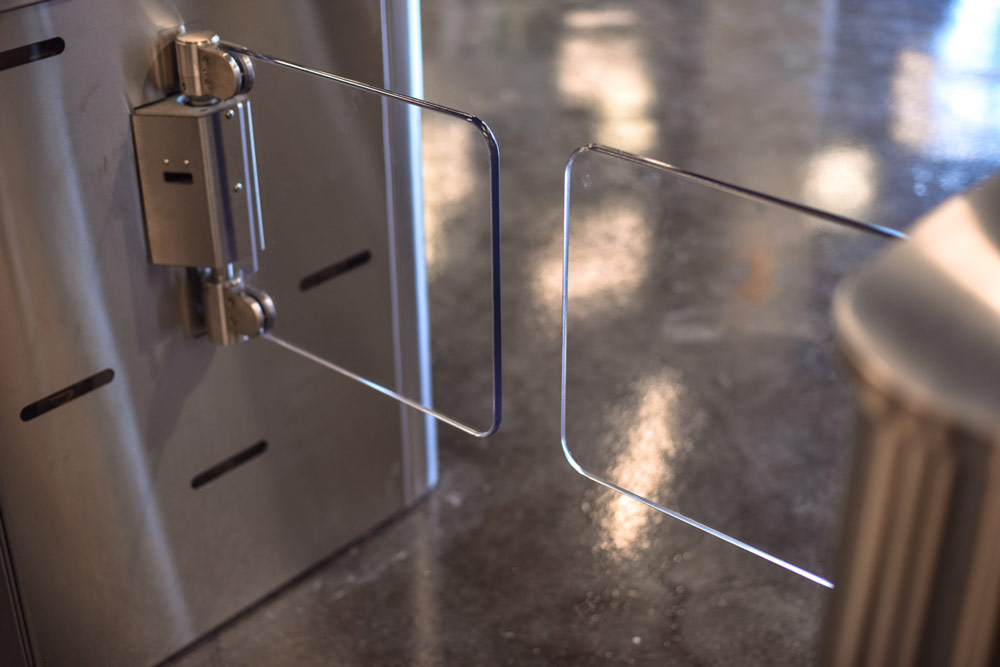

The Executive™ Series motorized barrier optical swing gates are our premier high traffic volume units, crafted in 304 stainless steel. This model features solid surface or wood laminate tops and either round or trapezoid-shaped ends. It creates an ADA-width lane that’s ideal for office lobbies, embassies, college student centers and anywhere where both aesthetics and performance will enhance the project space. Add additional single units to create more lanes to the base ADA pair, or just configure your single lane array as needed. Additionally, customers may have their company logo laser etched into the panels; a popular finishing option.
Turnstile Options
Dimensions & Drawings
| Height | 38.925″ |
| Width | 58.875″ |
| Depth | 36.750″ |
| Base | 8.000″ |
| Flap Gate Length | 16.500″ |
| Height | 38.925″ |
| Width | 89.500″ |
| Depth | 36.750″ |
| Base | 8.000″ |
| Flap Gate Length | 16.500″ |
| Height | 38.925″ |
| Width | 120.00″ |
| Depth | 36.750″ |
| Base | 8.000″ |
| Flap Gate Length | 16.500″ |
Features & Options
Technical Features:
- Optical sensors provide for passage for up to 30 people per minute
- Powerful through-beam sensors exceed sensing distance to ensure proper functionality
- Tri-Color Lights for lane status
- Lower section optical sensors prevent unauthorized “crawling” through lanes
- Can be configured for controlled passage in one or both directions, with free or no passage in the other via settings on the logic controller
- Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems
- Passage widths are flexible from 22″ to 38″
- Fire alarm inputs incorporated to work with your fire system – upon fire condition panels open outward for free egress
Additional top selections, such as Corian® or wood can be quoted upon request. Top selections are subject to availability.
Options:
- Bidirectional key overrides (fail open only)
- 8 digit key resettable digital counter with LCD display and 7-year lithium battery
- ADA push to exit placard button
- Laser etching of your company logo/artwork into the paddles
- Corian™, wooden or other alternate top choices
- Stainless steel round end tops
Standard Solid Surface Top Choices (as of 4/28/2023):
- Autumn
- Concrete
- Crushed Almond
- Flurries
- Lake Michigan
- Obsidian
- Peach Freeze
- Pewter
- Spanish Moss
- Whole Wheat
Additional top selections, such as Corian® or wood can be quoted upon request. Top selections are subject to availability.
Technical Documents
The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.
Data Sheet & Installation Guide:
Assembly Drawings:
- EX300-RM-ADA Assembly Drawing
- EX300-RM-ADA & EX300-RM-S (with 1 Single Array) Assembly Drawing
- EX300-RM-ADA & EX300-RM-S (with 2 Single Array) Assembly Drawing
Anchor & Conduit Locations:
Does your equipment seem a little different than shown in the above documents? Please check out our Obsolete Resources page to review electrical and mechanical information on older versions of our equipment.
Additional Suggestions
Like our EX300-RM-ADA unit, the other members of our Executive™ Series family are high-traffic volume units crafted in 304 stainless steel with solid surface tops in either a round or trapezoid-shaped end. They’re also ideal solutions where both aesthetics and performance are key aspects to controlling pedestrian access. Our Executive™ Series units are available in tripod arm and ADA models.
