Tiffany Series P60 Aluminum and Polycarbonate Portal

Full Height Aluminum Turnstile P60

CLEAR ANODIZED FINISH

Full Height Aluminum Turnstile P60 Piggy-Back

OPTICAL ANTI PIGGY-BACKING

T36-ADA Aluminum and Glass Door

P60 & T36-ADA

View Turnstile Options ​

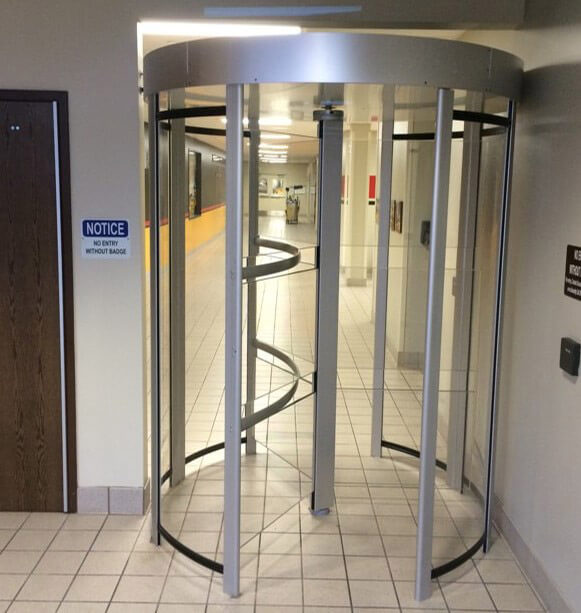

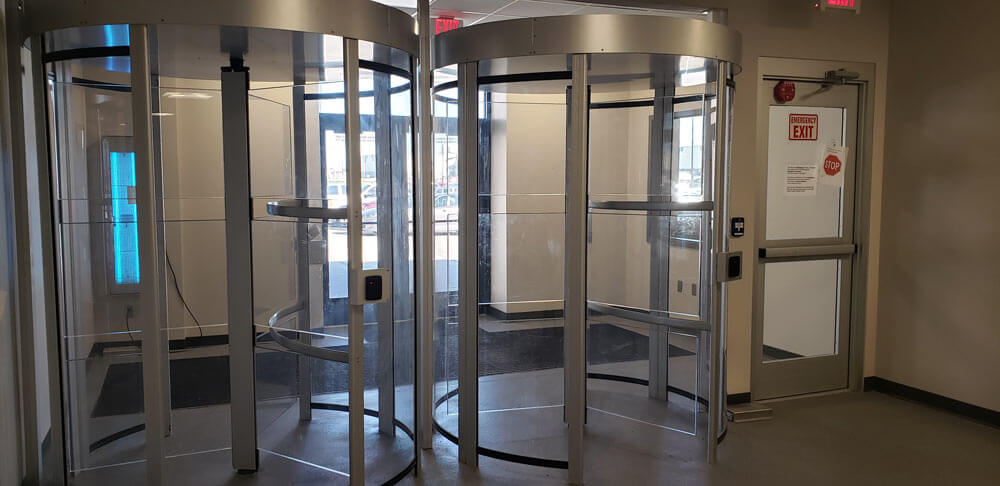

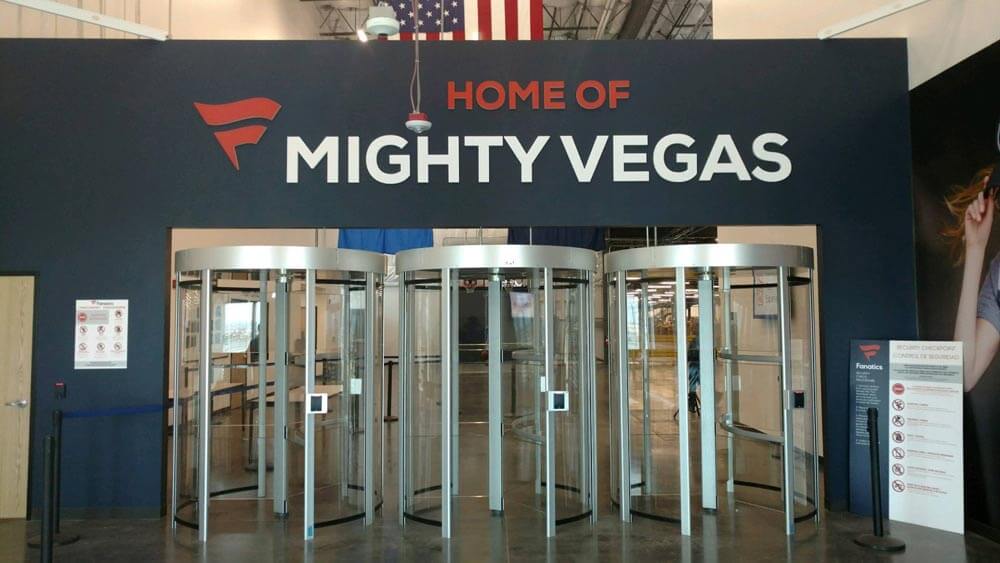

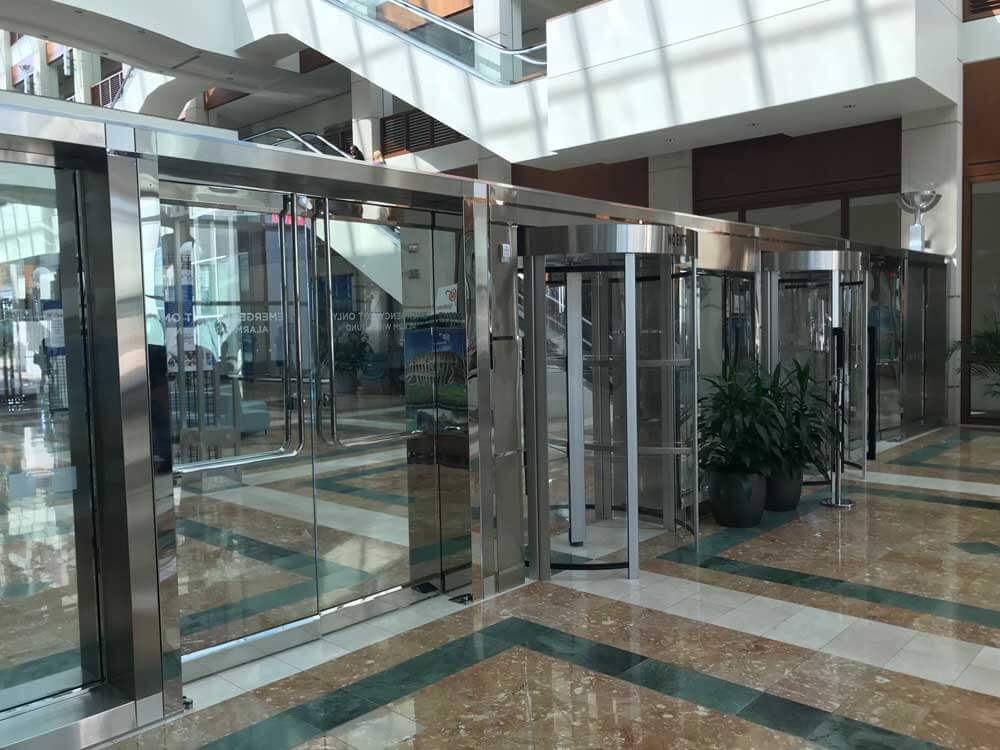

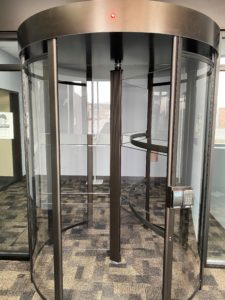

The Tiffany Series P60 offers a modern, open feel while providing a secure, full height portal. Available in a clear anodized or dark bronze finish, this unit will perform the same way a traditional full height turnstile does with a less imposing look. It’s ideal for separating offices from production areas, lunchroom entrances, and is used to enhance lobby vestibule entrances.

Full Height Turnstiles Tiffany P60 View Photos Full Height Turnstiles Tiffany P60 View Photos Full Height Turnstiles Tiffany P60 View Photos Full Height Turnstiles Tiffany P60 View Photos View Photos
​

Turnstile Options

Dimensions & Drawings

Dimensions
Arm Panels 31″ Long / 21.25″ High / .75″ Thick
Exterior Height 91.000″
Interior Height 84.000″
Diameter 72.284″
Pedestrian Clearance 30.000″

Options

Additional options are available upon request.

Technical Documents

The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.



Data Sheet & Installation Guide:

Assembly Drawings:

Footprint:

Does your equipment seem a little different than shown in the above documents? Please check out our Obsolete Resources page to review electrical and mechanical information on older versions of our equipment.

6500 Series Control Head

Every turnstile we build operates with our durable 6500 Series Control Head. This flexible, easy-to-service modular control system allows for our units to be configured to meet your unique security needs.

Factory configurations include:

  • Manual (free passage) in both directions
  • Manual (free passage) in one direction, locked in the other direction
  • Electronically controlled in one direction, manual (free passage) in the other direction
  • Electronically controlled in one direction, locked in the other direction
  • Electronically controlled in both directions

Electronic control heads can also be configured to be fail-lock(secure), fail-open(safe) or any combination of the two for no additional charge.

A key-override option is also available to give you the ability to unlock your turnstile with a simple key turn.

The 6500 Series Control Head is certified by Intertek to conform to the following standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247.
