Monitor RD70 Full Door Secure Aluminum and Polycarbonate Portal

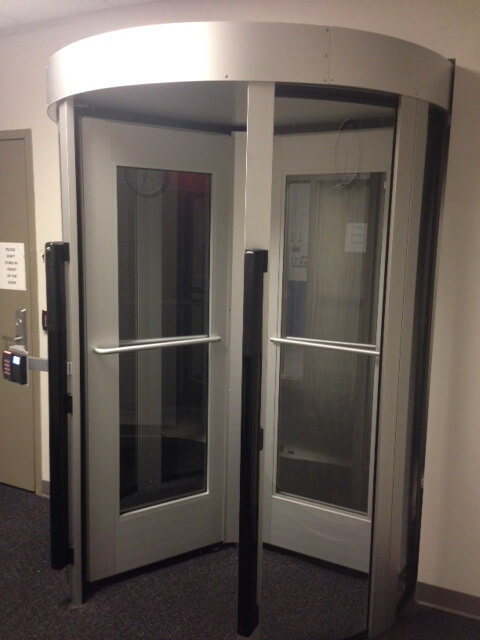

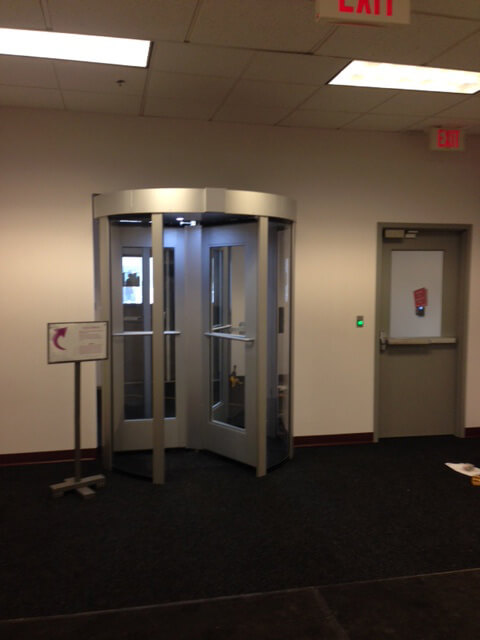

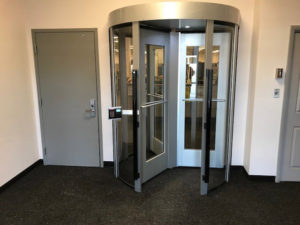

The Monitor RD70 is a stylish, three-vane, revolving-door-type high security portal. It’s designed for locations requiring improved visitor security, or as the barrier between production and office areas. Instead of a traditional physical barrier to prevent passage in the wrong direction, this model features an ultrasonic sensor to enforce traffic flow, and also reduces wind and noise transfer between connected areas. This unit will perform the same way a traditional full height turnstile does with a less imposing look. It’s available in a clear anodized or a dark bronze finish.

Turnstile Options

Dimensions & Drawings

Tiffany RD70 Full Door Secure Aluminum and Polycarbonate Portal technical drawing Tiffany RD70 Aluminum and Polycarbonate Portal technical drawing
Dimensions
EXTERIOR HEIGHT 91.000″
INTERIOR HEIGHT 84.000″
DIAMETER 72.284″
PEDESTRIAN CLEARANCE 29.750″

Options

Additional options are available upon request.

Technical Documents

The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.



Data Sheet & Installation Guide:

Assembly Drawings:

Wiring Diagram & Legend:

Footprint:

Does your equipment seem a little different than shown in the above documents? Please check out our Obsolete Resources page to review electrical and mechanical information on older versions of our equipment.

6500 Series Control Head

Every turnstile we build operates with our durable 6500 Series Control Head. This flexible, easy-to-service modular control system allows for our units to be configured to meet your unique security needs.

Factory configurations include:

  • Manual (free passage) in both directions
  • Manual (free passage) in one direction, locked in the other direction
  • Electronically controlled in one direction, manual (free passage) in the other direction
  • Electronically controlled in one direction, locked in the other direction
  • Electronically controlled in both directions

Electronic control heads can also be configured to be fail-lock(secure), fail-open(safe) or any combination of the two for no additional charge.

A key-override option is also available to give you the ability to unlock your turnstile with a simple key turn.

The 6500 Series Control Head is certified by Intertek to conform to the following standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247.
