Tiffany Series T80 Aluminum and Polycarbonate Portal

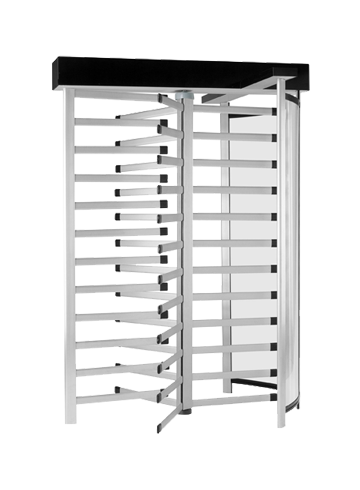

Full Height Aluminum Turnstile Tiffany T80

CLEAR ANODIZED FINISH

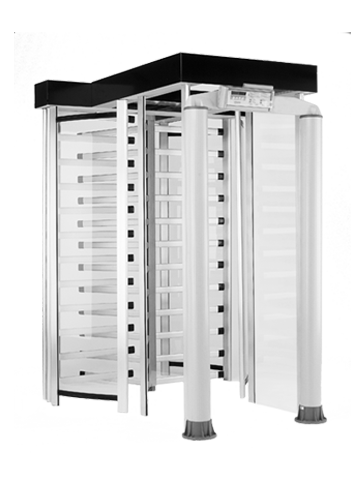

Full Height Aluminum Turnstile Tiffany T80 metal detection

METAL DETECTION ADD-ON

T80-T (Tandem)

View Turnstile Options

The Tiffany Series T80 single and tandem units offer a modern, open feel while providing a secure, full height portal. Available in a clear anodized or a dark bronze finish, these units will perform the same way a traditional full height turnstile does with a less imposing look.

Turnstile Options

Drawings & Dimensions

Tiffany Series Single

Dimensions
EXTERIOR HEIGHT	91.000″
INTERIOR HEIGHT	84.000″
WIDTH	66.250″
PEDESTRIAN CLEARANCE	27.750″

Tiffany Series Tandem

Dimensions
EXTERIOR HEIGHT	91.000″
INTERIOR HEIGHT	84.000″
WIDTH	96.250″
PEDESTRIAN CLEARANCE	27.750″

Options

Bidirectional key overrides
Daylight visible indicator lights
8 digit key resettable digital counter with LCD display and 7-year lithium battery
Card reader mounting enclosure
Stainless steel overhead full canopy
Cold weather package, including thermostat-controlled heater and insulated mainframe
Metal detection
Push-button and wireless remotes

Additional options available upon request.

Technical Documents

The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.

Data Sheet & Installation Guide:

Assembly Drawings:

Anchor & Conduit Locations:

Does your equipment seem a little different than shown in the above documents? Please check out our Obsolete Resources page to review electrical and mechanical information on older versions of our equipment.

6500 Series Control Head

Every turnstile we build operates with our durable 6500 Series Control Head. This flexible, easy-to-service modular control system allows for our units to be configured to meet your unique security needs.

Factory configurations include:

Manual (free passage) in both directions
Manual (free passage) in one direction, locked in the other direction
Electronically controlled in one direction, manual (free passage) in the other direction
Electronically controlled in one direction, locked in the other direction
Electronically controlled in both directions

Electronic control heads can also be configured to be fail-lock(secure), fail-open(safe) or any combination of the two for no additional charge.

A key-override option is also available to give you the ability to unlock your turnstile with a simple key turn.

The 6500 Series Control Head is certified by Intertek to conform to the following standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247.
