PassThru Series Waist High Turnstiles

PTS STAINLESS TRIPOD

PTR ROUND END

PTZ TRAPEZOID END

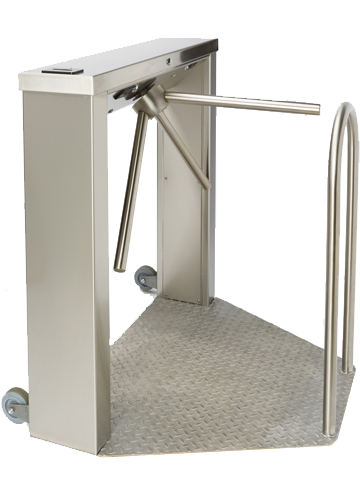

PTS-P (PORTABLE)

View Turnstile Options

The PassThru™ Series waist high turnstiles are high traffic volume units crafted in 304 stainless steel. This model provides the largest passage area (18″ arm) of any of our waist high units. PassThru™ units are available in total stainless steel (PTS or PTS-P; portable) for interior or exterior applications, or with a solid surface top for interior projects (PTR round end and PTZ trapezoid end).

Turnstile Options

Dimensions & Drawings

PassThru Waist High Turnstile Technical Drawing

Dimensions
HEIGHT	38.062″
WIDTH	26.218″
DEPTH	36.437″
BASE	8.000″
ARM LENGTH	18.000″

Options

Bidirectional key overrides
Daylight visible LED lane status lights (top mounted)
8 digit key resettable digital counter with LCD display and 7-year lithium battery
12 Ah 24 VDC battery backup system
Corian®, wood laminate or other alternate top choices outside of the standard selection (for round or trapezoid models)
Coin Acceptor (PTS model)
Push Buttons

Additional options are available upon request.

Technical Documents

The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.

Data Sheet & Installation Guide:

Assembly Drawings:

Anchor & Conduit Locations:

Does your equipment seem a little different than shown in the above documents? Please check out our Obsolete Resources page to review electrical and mechanical information on older versions of our equipment.

6500 Series Control Head

Every turnstile we build operates with our durable 6500 Series Control Head. This flexible, easy-to-service modular control system allows for our units to be configured to meet your unique security needs.

Factory configurations include:

Manual (free passage) in both directions
Manual (free passage) in one direction, locked in the other direction
Electronically controlled in one direction, manual (free passage) in the other direction
Electronically controlled in one direction, locked in the other direction
Electronically controlled in both directions

Electronic control heads can also be configured to be fail-lock(secure), fail-open(safe) or any combination of the two for no additional charge.

A key-override option is also available to give you the ability to unlock your turnstile with a simple key turn.

The 6500 Series Control Head is certified by Intertek to conform to the following standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247.

Learn More
