HS336 / HS348 ADA High Security Gates

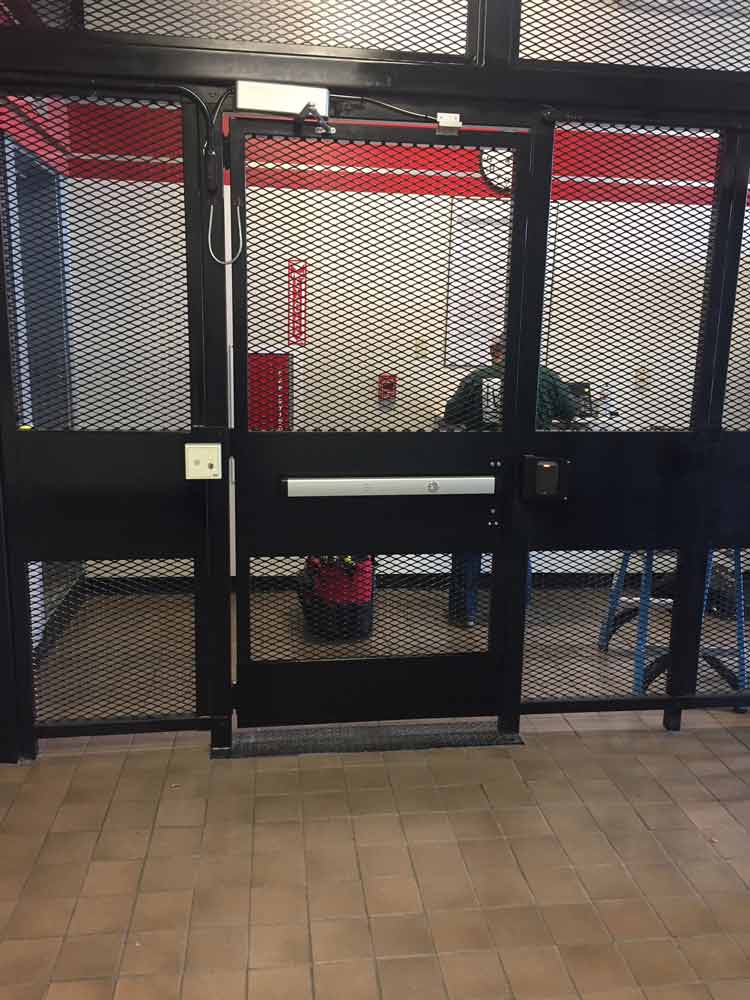

Powder-Coated with Push Bar and Security Mesh

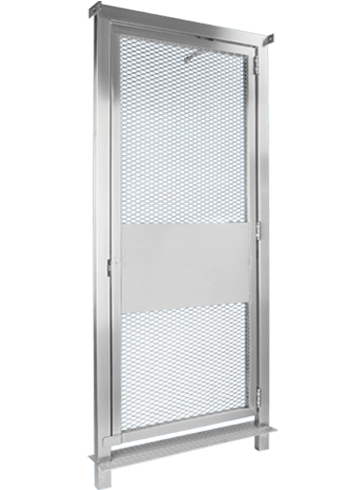

Stainless Steel With Push Bar and Security Mesh

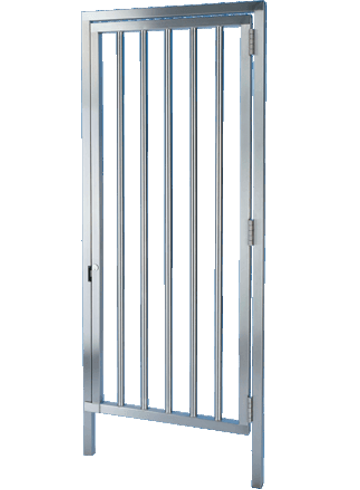

Stainless Steel Tubing
- No rush fees
- Large Inventory
- Fast Delivery

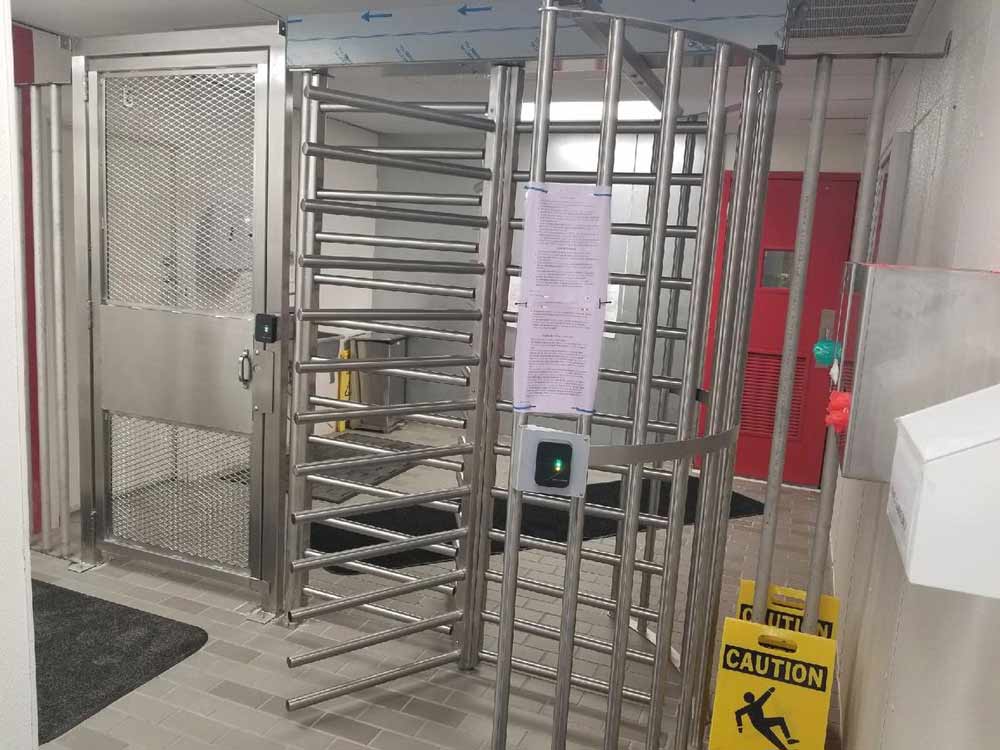

Our High-Security Series ADA Gates have been engineered to meet the most demanding security and control requirements. Paired with our HS400 Series Full Height turnstiles, they provide ADA accommodation to any project. Crafted from tubular steel (for controlled, both direction units) or mesh with a push bar for free-exit projects, the HS336/HS348 ADA gates complete any access control job.
These units are available in your choice of galvanized, powder-coated carbon steel or stainless steel (304) finishes to match your turnstile array. For added corrosion resistance, they are also available in powder coat over galvanized or 316 stainless steel.
Turnstile Options
Drawings & Dimensions
| Door Closer | Locinox Mammoth 180 |
| Deadlatch | Adams Rite 4510 Series with 31/32″ backset |
| Strike | Adams Rite 7100 Series electronic strike – 24VDC |
| Cylinder | Schlage C keyway – standard SFIC available |
Options
- Reach prevention mesh
- Panic bar with mesh for free exit scenarios
- Magnetic lock (replaces strike)
- Motorized gate opener (requires 110VAC and adds 3″ to overall height of gate)
- Push buttons (wired or wireless)
- Variable passage widths (up to 40″); or you can choose our 48″ option
Additional options available upon request, including “barn-door” style custom configurations for wide passage requirements.
Standard powder coating color selections:
- Gelger Black II - 60 Gloss (A.K.A Vulcan Black)
- RAL 9003 Signal White
- RAL 1013 Oyster White
- RAL 9007 Grey Aluminum
- RAL 5023 Distant Blue
- RAL 5010 Gentian Blue
- RAL 6002 Leaf Green
- RAL 8028 Terra Brown
Additional colors are available upon request.
Technical Documents
The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.
Data Sheet & Installation Guide:
Assembly Drawings:
- HS336-ADA Full Height Gate Assembly Drawing
- HS336-ADA-MS Full Height Gate Assembly Drawing
- HS348-ADA Full Height Gate Assembly Drawing
- HS348-ADA-MS Full Height Gate Assembly Drawing
Anchor & Conduit Locations:
Additional Suggestions

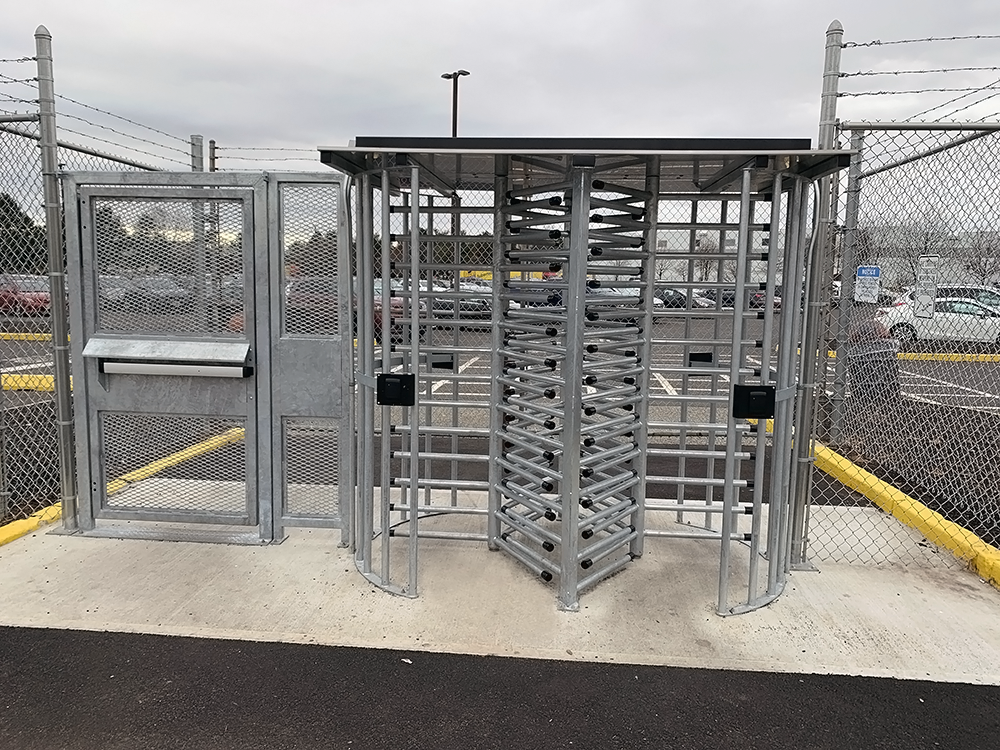

The HS336/HS348 ADA gates are the perfect complement to any of our HS400 Series Full Height Single or HS400 Series Full Height Tandem turnstiles. These units are engineered to meet the most-demanding security and control requirements, and feature our 6500 Series Control Head – certified by Intertek to conform to the following standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247.
