HS400 Series Tandem Turnstile

Full Height Turnstile HS400 Series Tandem

Stainless Steel

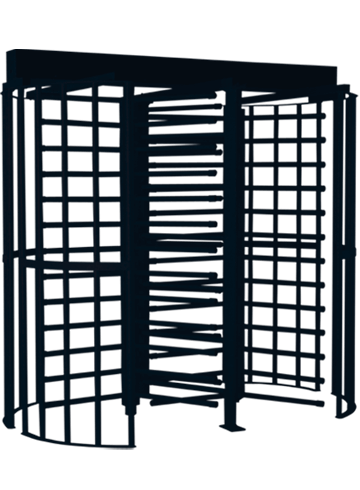

Full Height Turnstile HS400 Series Tandem powder coated black

Powder-Coated Black

Full Height Turnstile HS400 Series Tandem blue

Powder-Coated Blue

Full Height Turnstile HS400 Series Tandem with safety caps

Galvanized (shown with Orange Safety Caps)

Need a turnstile or gate fast?
Call us at 800-942-0829
  • No rush fees
  • Large Inventory
  • Fast Delivery

Our High-Security Series tandem turnstiles are engineered to meet the most-demanding security and control requirements, and are ideal for tight-space situations where large numbers of people need to be authenticated for entry. They are essentially two single turnstiles in one frame which saves significant space. We offer two sizes to meet your opening requirements the 94” wide HS427-T and the 102” wide HS430-T with the standard size 30” openings.

Tandem turnstiles can function as stand-alone units or as part of an integrated system. They can be fitted for any application with leading edge technology and features, and integrate with most card reader systems and biometrics. Like our other full heights, tandems feature auto-indexing and have two self-centering rotors along with two 6500 Series Control Heads – certified by Intertek to conform to the following UL standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247. They are available in galvanized, powder coated, stainless steel (304) and optional 316 stainless steel or powder coating over galvanizing for added corrosion protection.

Turnstile Options

Dimensions & Drawings

HS400 Tandem Turnstile CAD Drawing HS400 Tandem Turnstile CAD Drawing
Depth A Width B Passage Width C Passage Height D Overall Height* E
HS427-T 59.375″ (1508.1mm) 94.250″ (2394mm) 27″ (685.8mm) 84″ (2133.6mm) 91″ (2311.4mm)
HS430-T 62″ (1574.8mm) 102″ (2590.8mm) 30″ (762mm) 84″ (2133.6mm) 91″ (2311.4mm)

Please view our technical documents for more information.

*Our recommended clearance is a minimum of 4” above the cover to enable removal and allow access to the control mechanism.
**The HS427-T and HS430-T standard units have 1.5″ tubing, but are also available with heavy-duty 1.75″ tubing as models HS427-T-HD and HS430-T-HD.

Options

Additional options are available upon request.

HS400 Tandem Turnstile CAD Drawing

Standard powder coating color selections:

  • Gelger Black II - 60 Gloss (A.K.A Vulcan Black)
  • RAL 9003 Signal White
  • RAL 1013 Oyster White
  • RAL 9007 Grey Aluminum
  • RAL 5023 Distant Blue
  • RAL 5010 Gentian Blue
  • RAL 6002 Leaf Green
  • RAL 8028 Terra Brown

Additional colors are available upon request.

Technical Documents

The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.

Data Sheet & Installation Guide:

Assembly Drawings:

Anchor & Conduit Locations:

Canopy Drawings:

Note: Updated versions of the canopy assembly drawings are coming soon. Please contact us for more information.

  • HS427-T Canopy Assembly
  • HS430-T Canopy Assembly

As always, additional options are available upon request.

Does your equipment seem a little different than shown in the above documents? Please check out our Obsolete Resources page to review electrical and mechanical information on older versions of our equipment.

6500 Series Control Head

Every turnstile we build operates with our durable 6500 Series Control Head. This flexible, easy-to-service modular control system allows for our units to be configured to meet your unique security needs.

Factory configurations include:

  • Manual (free passage) in both directions
  • Manual (free passage) in one direction, locked in the other direction
  • Electronically controlled in one direction, manual (free passage) in the other direction
  • Electronically controlled in one direction, locked in the other direction
  • Electronically controlled in both directions

Electronic control heads can also be configured to be fail-lock(secure), fail-open(safe) or any combination of the two for no additional charge.

A key-override option is also available to give you the ability to unlock your turnstile with a simple key turn.

The 6500 Series Control Head is certified by Intertek to conform to the following standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247.

Additional Suggestions

Complete any project with our HS336 / HS348-ADA Full Height Gate. It’s the matching ADA solution for your HS400 Series turnstile, and is available in multiple styles with vertical bars, security mesh and push bar exiting. It can be custom-built for width.
