Brute Series Waist High Turnstiles

Waist High Turnstile BR550-S

BR5500-S TRIPOD

Brute Waist High Portable Turnstile

BR5500-P PORTABLE

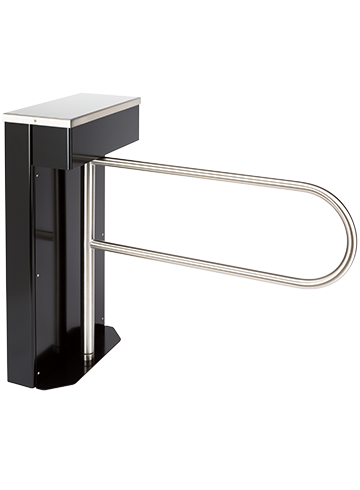

Waist High Turnstile BR5500 ADA

BR5500-ADA

The Brute™ Series waist high turnstile units operate reliably with high traffic volumes where cost is an important consideration, and are ideal for schools, stadiums, retail or anywhere else you need reliable, basic traffic control. These cabinets are crafted in heavy, seven-gauge carbon steel (available in your choice of color) with stainless steel tops, arms and hub. They can be interfaced with LCD counters, computer attendance systems, card readers, push-buttons and wireless remote controls. Like all of our other models, the Brute™ series operates with our 6500 Series Control Head.

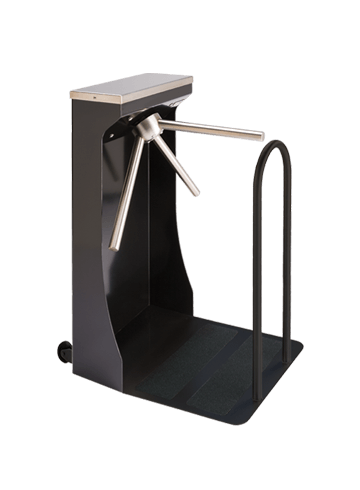

Portable units (BR5500-P) are also available. They feature a base plate, wheels for easy movement and a curved bar for lane creation. Customers frequently use these with our battery-operated counters for a flexible traffic flow solution.

As always, we offer an ADA-compliant, handicapped gate with this series (BR5000-ADA) as well as a “portable” handicapped gate (BR5000-ADA-P).

Turnstile Options

Dimensions & Drawings

BRUTE SERIES TRIPOD

Brute Series Waist High Turnstile technical drawing Brute Series Waist High Turnstile technical drawing
Dimensions
HEIGHT 37.000″
WIDTH 22.500″
DEPTH 20.125″
BASE 8.000″
ARM LENGTH 14.500″

BRUTE SERIES PORTABLE

Brute Series Waist High Portable Turnstile technical drawing Brute Series Waist High Portable Turnstile technical drawing
Dimensions
HEIGHT 37.000″
WIDTH 32.750″
DEPTH 8.187″
BASE 27.852″
ARM LENGTH 14.500″

BR5500-ADA

Brute Series Waist High ADA technical drawing Brute Series Waist High ADA technical drawing
Dimensions
HEIGHT 37.000″
WIDTH 44.414″
DEPTH 20.125″
BASE 8.820″
PASSAGE 34.133″

BR5000-ADA (Old Version)

Brute Series Waist High Portable Turnstile technical drawing Brute Series Waist High Portable Turnstile technical drawing
Dimensions
HEIGHT 37.000″
WIDTH 44.750″
DEPTH 20.125″
BASE 4.375″
PASSAGE 34.437″

Options

BR5500-S Tripod Turnstile:

BR5500-P Portable Turnstile:

BR5000-ADA Swing Gate:

BR5500-ADA Swing Gate:

Additional options are available upon request


Standard powder coating color selections:

  • Gelger Black II - 60 Gloss (A.K.A Vulcan Black)
  • RAL 9003 Signal White
  • RAL 1013 Oyster White
  • RAL 9007 Grey Aluminum
  • RAL 5023 Distant Blue
  • RAL 5010 Gentian Blue
  • RAL 6002 Leaf Green
  • RAL 8028 Terra Brown

Additional colors are available upon request.

Technical Documents

The following technical documents are available as downloadable PDF documents. If you have any issues with them or need additional information, please contact us.



Does your equipment seem a little different than shown in the above documents? Please check out our Obsolete Resources page to review electrical and mechanical information on older versions of our equipment.

6500 Series Control Head

Every turnstile we build operates with our durable 6500 Series Control Head. This flexible, easy-to-service modular control system allows for our units to be configured to meet your unique security needs.

Factory configurations include:

  • Manual (free passage) in both directions
  • Manual (free passage) in one direction, locked in the other direction
  • Electronically controlled in one direction, manual (free passage) in the other direction
  • Electronically controlled in one direction, locked in the other direction
  • Electronically controlled in both directions

Electronic control heads can also be configured to be fail-lock(secure), fail-open(safe) or any combination of the two for no additional charge.

A key-override option is also available to give you the ability to unlock your turnstile with a simple key turn.

The 6500 Series Control Head is certified by Intertek to conform to the following standards: UL 294, UL 325, UL Subject 2593, CAN/ULC S319 and CSA C22.2#247.
